Last year, Co-Motion introduced a limited-edition, gravel-capable aluminum tandem with a gorgeous paint job for the company’s 30th anniversary.
The Kalapuya is designed around road geometry with clearance for 700c x 45mm tires with a specially machined aluminum yoke and boost spacing. That beauty will set you back $11,000 for a complete bike set up as 2×11 with Shimano Ultegra 8000, a Gates Carbon timing belt and Rolf Hyalite carbon tandem wheels.
Steelhead Tandem
At NAHBS 2019, Co-Motion introduced the Steelhead tandem made with custom drawn and butted tubes of Reynolds 725 heat-treated chrome-moly tubing, experly fillet brazed by Co-Motion.
[caption id="attachment_133091" align="aligncenter" width="1140"]
Co-Motion was one of two companies showing off a gravel tandem at 2019 NAHBS Sacramento. © A. Yee / Cyclocross Magazine[/caption]
If the buyer wants, the Steelhead can be TIG welded for a slightly lower cost. It has road-oriented geometry that can be customized to the buyer’s needs. It is also able to fit 700c x 45mm tires.
The Steelhead introduces Co-Motion’s new Carbon Boost fork with 15x110mm thru-axle spacing. The Steelhead comes standard with 68mm BSA threaded bottom brackets with an eccentric front hanger to tension the timing chain. BB30 or PF30 bottom brackets are an available option.
[caption id="attachment_133100" align="aligncenter" width="1140"]

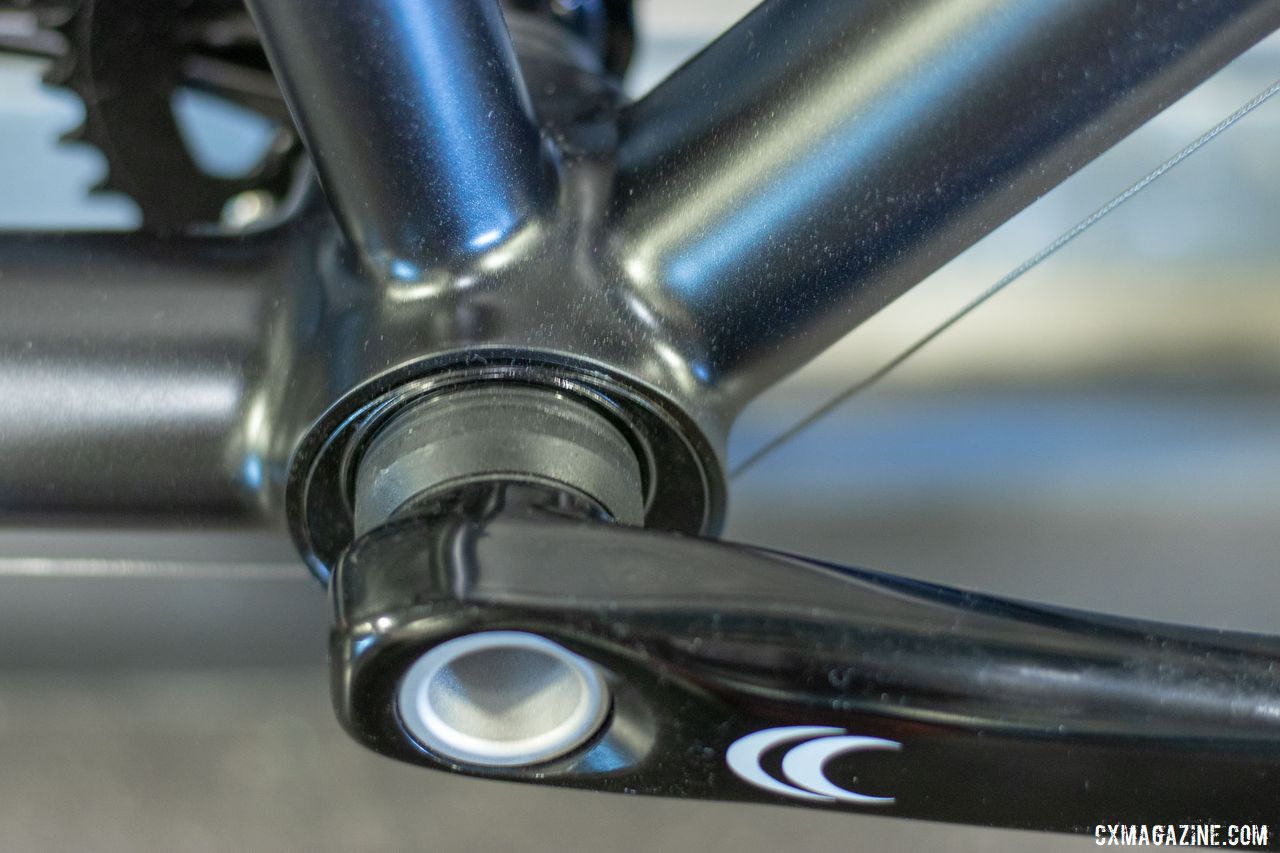

The tandem has a 68mm BSA threaded BB. Co-Motion was one of two companies showing off a gravel tandem at 2019 NAHBS Sacramento. © A. Yee / Cyclocross Magazine[/caption]
The bike was shown with an Ultegra 8000 2×11 build with Co-Motion compact tandem cranks and a standard timing chain. The wheels use custom-drilled 40-hole Astral Leviathan aluminum rims. Astral is the custom wheel component subsidiary of Rolf Prima, also located in Eugene, Oregon. The Leviathan is tubeless ready and completely manufactured in Eugene.
The show bike had WTB Riddler 45mm gravel tires mounted. The paint is Tuxedo Black metallic with a matte clear coat that offered a subtle sparkle indoors, but we’re told it is remarkable with the sun shining on it.
[caption id="attachment_133101" align="aligncenter" width="1140"]

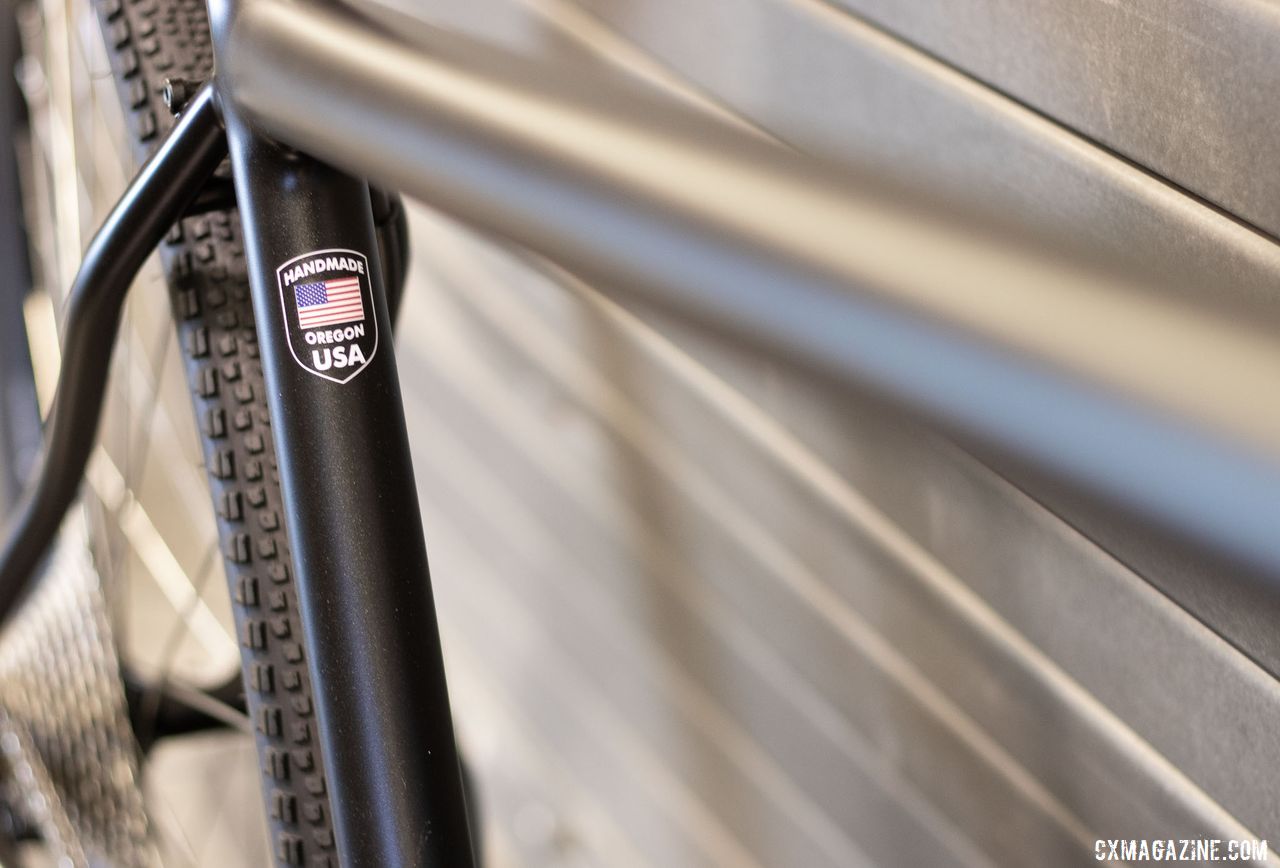

Co-Motion builds its bikes by hand in Oregon. Co-Motion was one of two companies showing off a gravel tandem at 2019 NAHBS Sacramento. © A. Yee / Cyclocross Magazine[/caption]
The Co-Motion Steelhead as shown at NAHBS 2019 is $8,000, which includes the upcharge for the fillet brazing and custom paint. For added cost, the bike can be further upgraded with Di2 or carbon wheels if the customer desires.
One observation is the loss of the lateral tube in Co-Motion’s tandems. The lateral tube was costly and complicated in bike production. Co-Motion used a one-piece tube that was pierced at the captain’s seat tube junction.
CAD analysis led to its elimination without any ride quality deficits, according to Co-Motion. The benefit is simplified production and lighter frame weight. We’ll have to put that claim to the test.
Updated Klatch Gravel Bike
Co-Motion had more than tandems to show. In the booth we spied a custom painted Klatch gravel racing bike.
[caption id="attachment_133096" align="aligncenter" width="1140"]

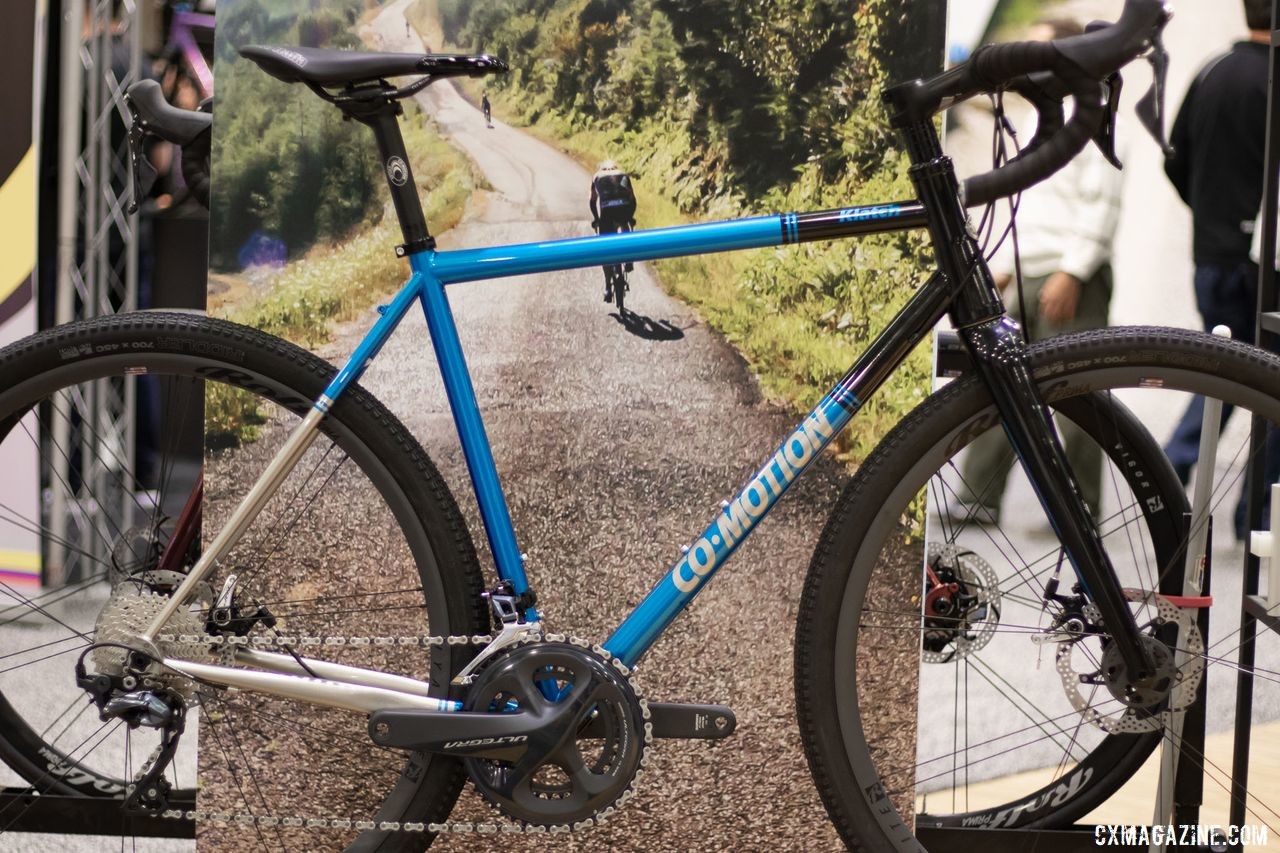

The Co-Motion Klatch steel gravel bike has received a few changes over the years, including increased clearance for 45mm tires and flat mount brakes. 2019 NAHBS Sacramento. © A. Yee / Cyclocross Magazine[/caption]
We first saw the Klatch at NAHBS 2015. Since then, the heart of the Klatch has largely stayed the same, while some features have been updated to meet the times.
Co-Motion still builds the bike with Reynolds 853 tubing in its Oregon shop.
[caption id="attachment_133089" align="aligncenter" width="1140"]
This Co-Motion Klatch steel gravel bike had a handsome metallic finish that reminded us of past Raleigh technium mountain bikes. 2019 NAHBS Sacramento. © A. Yee / Cyclocross Magazine[/caption]
The original bike had clearance for 700c x 40mm tires, but that room has been widened to accommodate 45mm tires. The bike has plenty of rack mounts for the adventurous sorts and continues to use front and rear thru-axles.
[caption id="attachment_133098" align="aligncenter" width="1202"]
The Co-Motion Klatch steel gravel bike has received a few changes over the years, including increased clearance for 45mm tires and flat mount brakes. Need a rack or fender? Co-Motion aims to please. 2019 NAHBS Sacramento. © A. Yee / Cyclocross Magazine[/caption]
For a closer look at both bikes, see the gallery below.
More info: co-motion.com
Stay tuned for more handbuilt bikes from 2019 NAHBS show in Sacramento.
Photo Gallery: Co-Motion Steel Steelhead Tandem and Klatch Gravel Bike
Co-Motion was one of two companies showing off a gravel tandem at 2019 NAHBS Sacramento. © A. Yee / Cyclocross Magazine
